Patients API Documentation

Patients API Documentation

Overview

The Patients API is a backend service developed to manage patient data and clinical records for the Patient Management mobile application. Built using Node.js for the backend logic and MongoDB as the database, this API seamlessly integrates with the front-end, which is developed using React Native.

Technologies

Backend: Node.js
Database: MongoDB
Front-end: React Native

Target Audience

This documentation is intended for developers involved in building or maintaining the Patient Management mobile application.

Project Repositories

Base URL

iOS Base URL: http://127.0.0.1:3000
Android Base URL: http://10.0.2.2:3000

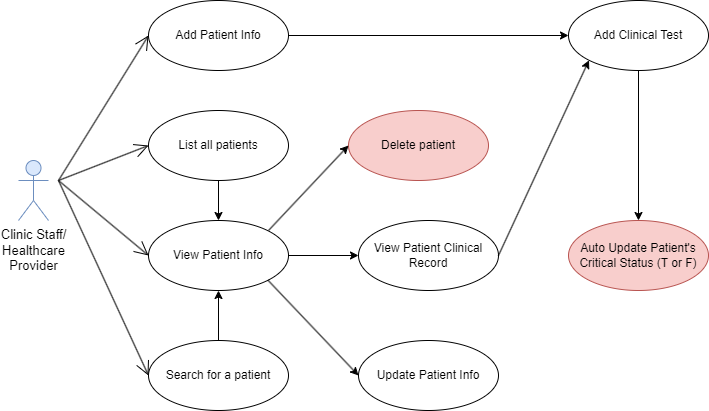

Use Case Diagram

alt text

Endpoints

GET all patients

GET http://127.0.0.1:3000/patients

Description

This endpoint makes an HTTP GET request to retrieve a list of patients.

Response

Returns a list of all patients. The response will be a JSON array containing patient objects with attributes such as first name, last name, date of birth, contact information, and so on.

Request Example

curl --location 'http://127.0.0.1:3000/patients

Response Example

[
  {
      "_id": "65f382d7076a0b12026fdb6b",
    "firstName": "Sam",
    "lastName": "Rihan",
    "dateOfBirth": "1999-01-12T00:00:00.000Z",
    "age": 25,
    "gender": "Female",
    ...
  },
  {
     "_id": "76f382d7076a0b12026fxc1f",
    "firstName": "John",
    "lastName": "Doe",
    "dateOfBirth": "1980-01-12T00:00:00.000Z",
    "age": 44,
    "gender": "Male",
    ...
  },
]

Create new patients

POST http://127.0.0.1:3000/patients

Description

This endpoint makes an HTTP POST request that allows you to create a new patient by providing the necessary details.

Response

Returns a list of all patients. The response will be a JSON array containing patient objects with attributes such as first name, last name, date of birth, contact information, and so on.

Parameters

Name	In	Required	Description
firstName	body	required	The first name of the patient.
lastName	body	required	The last name of the patient.
dateOfBirth	body	required	The date of birth of the patient.
age	body	required	The age of the patient.
gender	body	required	The gender of the patient.
height	body	required	The height of the patient (cm).
weight	body	required	The weight of the patient (kg).
address	body	required	The address of the patient.
city	body	required	The city of the patient.
province	body	required	The province of the patient.
postalCode	body	required	The postal code of the patient.
contactNumber	body	required	The contact number of the patient.
email	body	required	The email address of the patient.
identification	body	required	The identification of the patient.
identificationType	body	required	The type of identification of the patient.
purposeOfVisit	body	required	The purpose of the patient’s visit.
primaryCarePhysician	body	required	The primary care physician of the patient.
physicianContactNumber	body	required	The contact number of the primary care physician.
listOfAllergies	body	required	The list of allergies the patient has.
currentMedications	body	required	The current medications of the patient.
medicalConditions	body	required	The medical conditions of the patient.
insuranceProvider	body	required	The insurance provider of the patient.
insuranceIdNumber	body	required	The insurance ID number of the patient.
insuranceContactNumber	body	required	The contact number of the insurance provider.
emergencyContactPerson	body	required	The name of the emergency contact person.
emergencyContactNumber	body	required	The contact number of the emergency contact person.

Request Example

curl --location 'http://127.0.0.1:3000/patients' \
--header 'Content-Type: application/json' \
--data-raw '{
"firstName": "John",
"lastName": "Doe",
"dateOfBirth": "1990-09-09",
"age": 34,
"gender": "Male",
"height": 180,
"weight": 80,
"address": "Address for Patient",
"city": "Toronto",
"province": "Ontario",
"postalCode": "M1Q 1V3",
"contactNumber": "1234567890",
"email": "123@dfas.ca",
"identification": "Health card",
"identificationType": "HealthCard",
"purposeOfVisit": "Asthma",
"primaryCarePhysician": "Some Doctor",
"physicianContactNumber": "1234567890",
"listOfAllergies": "Bees",
"currentMedications": "Ibuprofen",
"medicalConditions": "Diabetes",
"insuranceProvider": "Sun Life",
"insuranceIdNumber": "098765432d1",
"insuranceContactNumber": "0987654321",
"emergencyContactPerson": "Emely Amby",
"emergencyContactNumber": "1111111111"
}'

Response Example

'{
  "firstName": "John",
  "lastName": "Doe",
  "dateOfBirth": "1990-09-09",
  "age": 34,
  "gender": "Male",
  "height": 180,
  "weight": 80,
  "address": "Address for Patient",
  "city": "Toronto",
  "province": "Ontario",
  "postalCode": "M1Q 1V3",
  "contactNumber": "1234567890",
  "email": "123@dfas.ca",
  "identification": "Health card",
  "identificationType": "HealthCard",
  "purposeOfVisit": "Asthma",
  "primaryCarePhysician": "Some Doctor",
  "physicianContactNumber": "1234567890",
  "listOfAllergies": "Bees",
  "currentMedications": "Ibuprofen",
  "medicalConditions": "Diabetes",
  "insuranceProvider": "Sun Life",
  "insuranceIdNumber": "098765432d1",
  "insuranceContactNumber": "0987654321",
  "emergencyContactPerson": "Emely Amby",
  "emergencyContactNumber": "1111111111"
  }'

GET patient by patientId

GET http://127.0.0.1:3000/patients/{patientId}

Description

This endpoint makes an HTTP GET request to retrieve details of a patient based on the provided patientId.

Response

The response includes various attributes of the patient such as first name, last name, date of birth, contact information, critical status, and so on.

Parameters

Name	In	Required	Description
patientId	path	Yes	Unique ID to use for this patient

Request Example

curl --location 'http://127.0.0.1:3000/patients/{patientId}'

Response Example

[
  {
    "_id": "65f4b15d732c8d4f8e3cd7ab",
    "firstName": "Sarah",
    "lastName": "Johns",
    "dateOfBirth": "1990-09-09T00:00:00.000Z",
    "age": 34,
    "gender": "Female",
    "height": 145,
    "weight": 45,
    "address": "Address for Patient",
    "city": "Toronto",
    "province": "Ontario",
    "postalCode": "M1Q 1V3",
    "contactNumber": "1234567890",
    "email": "123@dfas.ca",
    "identification": "HEalth card",
    "identificationType": "HealthCard",
    "purposeOfVisit": "Asthma",
    "primaryCarePhysician": "Some Doctor",
    "physicianContactNumber": "1234567890",
    "listOfAllergies": "Bees",
    "currentMedications": "Ibuprofen",
    "medicalConditions": "Diabetes",
    "insuranceProvider": "Sun Life",
    "insuranceIdNumber": "098765432d1",
    "insuranceContactNumber": "0987654321",
    "emergencyContactPerson": "Emely Amby",
    "emergencyContactNumber": "1111111111",
    "is_patient_critical": false,
    "createdAt": "2024-03-15T20:36:45.973Z",
    "updatedAt": "2024-03-30T16:22:02.654Z",
    "__v": 0
  }
]

Update patient details

PUT http://127.0.0.1:3000/patients/{patientId}

Description

This endpoint makes an HTTP PUT request that allows you to update a patient’s details.

Response

The response will be a JSON array containing the updated patient information, including the unique identifier (_id) and timestamps (createdAt, updatedAt). For more information about the parameters, refer to the Create new patients section.

Parameters

Name	In	Required	Description
patientId	path	Yes	Unique ID to use for this patient

Request Example

curl --location --request PUT 'http://127.0.0.1:3000/patients/660984c8fede11c231c93739' \
--header 'Content-Type: application/json' \
--data-raw '{
"firstName": "John",
"lastName": "Doe",
"dateOfBirth": "1990-10-10",
"age": 33,
"gender": "Male",
"height": 172,
"weight": 80,
"address": "XYZ main street",
"city": "Toronto",
"province": "Ontario",
"postalCode": "M1Q 1V3",
"contactNumber": "1234567890",
"email": "123@dfas.ca",
"identification": "HEalth card",
"identificationType": "HealthCard",
"purposeOfVisit": "Asthma",
"primaryCarePhysician": "Dr. House",
"physicianContactNumber": "1234567890",
"listOfAllergies": "Bees",
"currentMedications": "Ibuprofen",
"medicalConditions": "Diabetes",
"insuranceProvider": "Sun Life",
"insuranceIdNumber": "098765432d1",
"insuranceContactNumber": "0987654321",
"emergencyContactPerson": "Emely Amby",
"emergencyContactNumber": "1111111111" }'

Response Example

'{
  "firstName": "John",
  "lastName": "Doe",
  "dateOfBirth": "1990-09-09",
  "age": 33,
  "gender": "Male",
  "height": 172,
  "weight": 80,
  "address": "XYZ main street",
  "city": "Toronto",
  "province": "Ontario",
  "postalCode": "M1Q 1V3",
  "contactNumber": "1234567890",
  "email": "123@dfas.ca",
  "identification": "Health card",
  "identificationType": "HealthCard",
  "purposeOfVisit": "Asthma",
  "primaryCarePhysician": "Dr. House",
  "physicianContactNumber": "1234567890",
  "listOfAllergies": "Bees",
  "currentMedications": "Ibuprofen",
  "medicalConditions": "Diabetes",
  "insuranceProvider": "Sun Life",
  "insuranceIdNumber": "098765432d1",
  "insuranceContactNumber": "0987654321",
  "emergencyContactPerson": "Emely Amby",
  "emergencyContactNumber": "1111111111"
  }'

DELETE patient record

DELETE http://127.0.0.1:3000/patients/{patientId}

Description

This endpoint makes an HTTP DELETE request to delete a specific patient record.

Response

The response includes the ID of the deleted patient record, along with other attributes of the patient such as first name, last name, date of birth, contact information, and so on. It also includes the attribute updatedAt, which is the timestamp of when the record was last updated.

Parameters

Name	In	Required	Description
patientId	path	Yes	Unique ID to use for this patient

Request Example

curl --location --request DELETE 'http://127.0.0.1:3000/patients/{patientId}' \
--header 'Content-Type: application/json' \
--data-raw '{
    "firstName": "John",
    "lastName": "Doe",
    "dateOfBirth": "2023-09-09",
    "age": 34,
    "gender": "Female",
    "height": 145,
    "weight": 45,
    "address": "Address for PAtient",
    "city": "Toronto",
    "province": "Ontario",
    "postalCode": "M1Q 1V3",
    "contactNumber": "1234567890",
    "email": "123@dfas.ca",
    "identification": "HEalth card",
    "identificationType": "HealthCard",
    "purposeOfVisit": "Asthma",
    "primaryCarePhysician": "Some Doctor",
    "physicianContactNumber": "1234567890",
    "listOfAllergies": "Bees",
    "currentMedications": "Ibuprofen",
    "medicalConditions": "Diabetes",
    "insuranceProvider": "Sun Life",
    "insuranceIdNumber": "098765432d1",
    "insuranceContactNumber": "0987654321",
    "emergencyContactPerson": "Emely Amby",
    "emergencyContactNumber": "1111111111"
    }'

Response Example

{
  "_id": "6609cf25fede11c231c93741",
  "firstName": "Jane",
  "lastName": "Doer",
  "dateOfBirth": "2023-09-09T00:00:00.000Z",
  "age": 34,
  "gender": "Female",
  "height": 145,
  "weight": 45,
  "address": "Address for PAtient",
  "city": "Toronto",
  "province": "Ontario",
  "postalCode": "M1Q 1V3",
 "contactNumber": "1234567890",
  "email": "123@dfas.ca",
  "identification": "HEalth card",
  "identificationType": "HealthCard",
  "purposeOfVisit": "Asthma",
  "primaryCarePhysician": "Some Doctor",
  "physicianContactNumber": "1234567890",
  "listOfAllergies": "Bees",
  "currentMedications": "Ibuprofen",
  "medicalConditions": "Diabetes",
  "insuranceProvider": "Sun Life",
  "insuranceIdNumber": "098765432d1",
  "insuranceContactNumber": "0987654321",
  "emergencyContactPerson": "Emely Amby",
  "emergencyContactNumber": "1111111111",
  "createdAt": "2024-03-31T21:01:25.853Z",
  "updatedAt": "2024-03-31T21:01:25.853Z",
  "__v": 0
  }

GET clinical data by patientId

GET http://127.0.0.1:3000/patients/{patientId}/clinicaldata

Description

This endpoint makes an HTTP GET request to retrieve clinical data of a patient based on the provided patientId.

Response

The response is a JSON array and includes clinical data such as such as systolic and diastolic blood pressure, respiratory rate, blood oxygen level, pulse rate, patient ID, critical condition status.

Parameters

Name	In	Required	Description
patientId	path	Yes	Unique ID to use for this patient

Request Example

curl --location 'http://127.0.0.1:3000/patients/{patientId}/clinicaldata'

Response Example

[
  {
    "_id": "66086a77cfee14a94eddfb86",
    "bp_systolic": 120,
    "bp_diastolic": 90,
    "respiratory_rate": 20,
    "blood_oxygen_level": 95,
    "pulse_rate": 60,
    "patientId": "65f4b15d732c8d4f8e3cd7ab",
    "is_critical_condition": false,
    "createdAt": "2024-03-30T19:39:35.930Z",
    "updatedAt": "2024-03-30T19:39:35.930Z",
    "__v": 0
  }
]

Create new clinical data for a patient

POST http://127.0.0.1:3000/patients/{patientId}/clinicaldata

Description

This endpoint makes an HTTP POST request to add clinical data of a patient based on the provided patientId.

Response

The response is a JSON array and includes clinical data such as such as systolic and diastolic blood pressure, respiratory rate, blood oxygen level, pulse rate, patient ID, critical condition status.

Parameters

Name	In	Required	Description
patientId	path	Yes	Unique ID to use for this patient
bp_systolic	body	Yes	The systolic blood pressure of the patient.
bp_diastolic	body	Yes	The diastolic blood pressure of the patient.
respiratory_rate	body	Yes	The respiratory rate of the patient.
blood_oxygen_level	body	Yes	The blood oxygen level of the patient.
pulse_rate	body	Yes	The pulse rate of the patient.

Request Example

curl --location 'http://127.0.0.1:3000/patients/660984c8fede11c231c93739/clinicaldata' \
  --header 'Content-Type: application/json' \
  --data
    '{
      "bp_systolic": 120,
      "bp_diastolic": 90,
      "respiratory_rate": 20,
      "blood_oxygen_level": 96,
      "pulse_rate": 85
    }'

Response Example

{
    "_id": "6609d3cffede11c231c9374a",
    "bp_systolic": 120,
    "bp_diastolic": 90,
    "respiratory_rate": 20,
    "blood_oxygen_level": 96,
    "pulse_rate": 85,
    "patientId": "660984c8fede11c231c93739",
    "is_critical_condition": false,
    "createdAt": "2024-03-31T21:21:19.508Z",
    "updatedAt": "2024-03-31T21:21:19.508Z",
    "__v": 0
}

NOTE: The is_critical_condition attribute is a boolean that automatically updates based on the latest clinical data. If any of the patient’s vital signs is outside the normal range, is_critical_condition is set to TRUE.

GET all critical patients

GET http://127.0.0.1:3000/patients

Description

This endpoint makes an HTTP GET request to retrieve a list of patients in critical condition.

The is_critical_condition attribute is a boolean that automatically updates based on the latest clinical data. If any of the patient’s vital sign is outside the normal range, is_critical_condition is set to TRUE. If a patient’s is_critical_condition is TRUE, their record is included in the response.

Response

Returns a list of all patients. The response will be a JSON array containing patient objects with attributes such as first name, last name, date of birth, contact information, and so on.

Request Example

curl --location 'http://127.0.0.1:3000/patients/critical'

Response Example

[
{
    "_id": "660758f602f8073d1a9f3e54",
    "firstName": "Sam",
    "lastName": "Smith",
    "dateOfBirth": "1993-08-01T04:00:00.000Z",
    "age": 30,
    "gender": "Male",
    "height": 189,
    "weight": 89,
    "address": null,
    "city": null,
    "province": "ON",
    "postalCode": "L5b 2Z1",
    "contactNumber": "8923455",
    ...
    "is_patient_critical": true
},
{
    "_id": "65f4ca0a732c8d4f8e3cd7fa",
    "firstName": "a",
    "lastName": "a",
    "dateOfBirth": "2000-01-01T00:00:00.000Z",
    "age": 24,
    "gender": "Male",
    "height": 170,
    "weight": 80,
    "address": null,
    "city": null,
    "province": "ON",
    "postalCode": "m1m1m1",
    "contactNumber": "555",
    ...
    "is_patient_critical": true,
    "createdAt": "2024-03-15T22:22:02.465Z",
    "updatedAt": "2024-03-15T22:22:13.180Z",
    "__v": 0
} ]
